Detail

Product Description

Adjustable stainless steel Miter detent plate with 11-positive stops delivers repeatable accuracy and worksite durability. Tall sliding fence supports crown molding up to 5-1/4" nested and base molding up to 6-1/2" vertically against the fence while easily sliding out of the way for bevel cuts. 0-48 degree to the left and 0-3 degree to the right for increased capacity. 0-50 degree left and right Miter capacity for greater versatility. Cam lock Miter handle with miter detent override deliver Quick. accurate Miter angles. Hardened steel bevel stops at 0. 33.9. 45 and 48 degrees. Lightweight with built-in carry handle for easy portability. Standard equipment: carbide blade. extension kit. dust bag. blade wrench. Specifications: 15.0 amps. 4. 000 RPM No load speed. 12" blade diameter. 5/8 or 1" Arbor size. 6-1/2" vertical capacity baseboard against fence. 5-1/4" vertical capacity crown molding vertically nested. 8" horizontal capacity baseboard lying flat. 6-1/2" horizontal capacity crown molding lying flat. 2 x 8" for 45 degree bevel cut capacity (dimensional lumber). 2 x 8" for 90 degree cross-cut capacity (dimensional lumber). 2 x 8" Max width for 90 degree cross-cut capacity. 4 x 6" dimensional lumber Max height for 45 degree miter cut capacity. 2 x 6 dimensional lumber Max width for 45 degree miter cut capacity. 42 lbs. Tool weight. 15 amp motor. 4. 000 RPM delivers extended power and durability. Stand not included.

This sturdy saw is designed to deliver both a versatile setup and excellent accuracy to handle a variety of applications. The precise miter system's adjustable stainless steel miter detent plate features 11 positive stops for easy setup and improved productivity. An easy-to-adjust cam-lock miter handle delivers quick and accurate miter angles. as well as allowing for detent override--which allows you to adjust the miter setting without the saw slipping into the miter detents. The saw's wide miter capacity--0 to 50 degrees to the left and the right--adds versatility.

In addition. a tall fence supports 5-1/4-inch crown molding nested vertically. as well as 6-1/2-inch base molding set vertically against the fence. This fence slides out of the way easily when it's time to make bevel cuts.

Increased Bevel Capacity and Convenient StopsThis DEWALT saw is designed to deliver quick. accurate bevel cuts. Ideal for a range of applications. the saw can deliver clean. 45-degree bevel cuts through dimensional lumber that measures up to 2 by 8 inches.

It also allows you to setup for bevel cuts that measure between 0 degrees and 48 degrees to the left and bevels that measure between 0 degrees and 3 degrees to the right. providing increased capacity for big jobs. Plus. with hardened steel bevel stops at 0. 33.9. 45 and 48 degrees. this saw delivers versatility and makes finding and setting the most common bevel angles a quick and easy process.

Portable and Easy To TransportThis lightweight compound miter saw weighs just 42 pounds and features a built-in carry handle. so you can move it around the jobsite easily and lift it comfortably when it comes time to stow the saw at the end of the day.

This 12-inch single-bevel compound miter saw also comes with a DEWALT warranty package that includes a three-year limited warranty. a one-year free service contract. and a 90-day money back guarantee.

What's in the BoxDEWALT 12-Inch Single-Bevel Compound Miter Saw. carbide blade. dust bag. and blade wrench.

See more

From the manufacturer

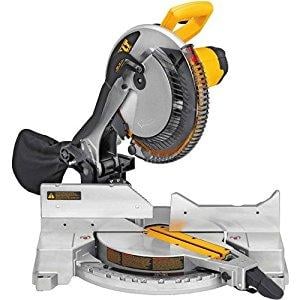

DEWALT DW715 15-Amp 12-Inch Compound Miter saw

The DW715 12" Single-Bevel Compound Miter Saw is powered by a 15 Amp motor to drive 4.000 rpm. delivering extended power and durability. Features stainless steel miter de tent plate and cam miter lock that provide repeatable accuracy and durability with easy adjustments. Tall sliding fences support 6-1/2" of base molding vertically and 5-1/4" of crown molding vertically nested. Lightweight design and built-in carry handle for portability.

Features:

-15 amp motor. 4.000 rpm delivers extended power and durability.

-Adjustable stainless steel miter de tent plate with 11 positive stops improves productivity and ensures cutting.

-Precise miter system and machined-base fence support optimize cutting accuracy.

-Tall sliding fence supports crown molding up to 5-1/4" nested and base molding up to 6-1/2" vertically against the fence while easily sliding out of the way for bevel cuts.

-Bevels 0°-48° to the left and 0°-3° to the right for increased capacity.

-0°-50° left and right miter capacity for greater versatility.

-Lightweight (42 lbs.) with built-in carry handle for easy portability.

Cam lock miter handle with de tent override deliver quick and accurate miter angles.

-Three hardened steel bevel stops at 0°. 33.9°. and 45° delivers versatility at most common bevel angles.

Specifications:

-45° Bevel Cut Capacity (dimensional lumber) 2x8.

-45° Miter Cut Capacity (Max Height) 4x4 dimensional lumber.

-45° Miter Cut Capacity (Max Width) 2x6 dimensional lumber.

-90° Cross-Cut Capacity (dimensional lumber) 4x6 in.

-90° Cross-Cut Capacity (Max Width) 2x8.

-Amps 15 Amps.

-Arbor Size 5/8" or 1 in.

-Blade Diameter 12".
