Detail
Product information
Technical Details
| Manufacturer | FEIN |
|---|---|
| Part Number | 71161164000 |
| Product Dimensions | 32 x 48 x 14 cm; 1.5 Kilograms |
| Batteries | 1 Lithium Ion batteries required. |
| Item model number | 71161164000 |
| Colour | Orange |
| Material | Plastic. Metal |
| Power Source | Battery Powered |
| Voltage | 18 Volts |
| Wattage | 90 watts |
| Torque | 1 Newton Meters |
| Item Package Quantity | 1 |
| Number of Pieces | 1 |
| Speed | 850 RPM |
| Measurement System | Metric |
| Special Features | Brushless Motor. Cordless |
| Included Components | 1 x Cordless Drill/Driver 1 x QuickIN Drill Chuck (120 Nm) 1 x Belt Clip 1 x Bit Holder 1 x Handle 1 x Plastic Carrying Case |
| Batteries included? | No |
| Batteries Required? | Yes |
| Battery Cell Type | Lithium Ion |
| Battery description | Lithium-Ion |
| Item Weight | 1.5 kg |
Product description

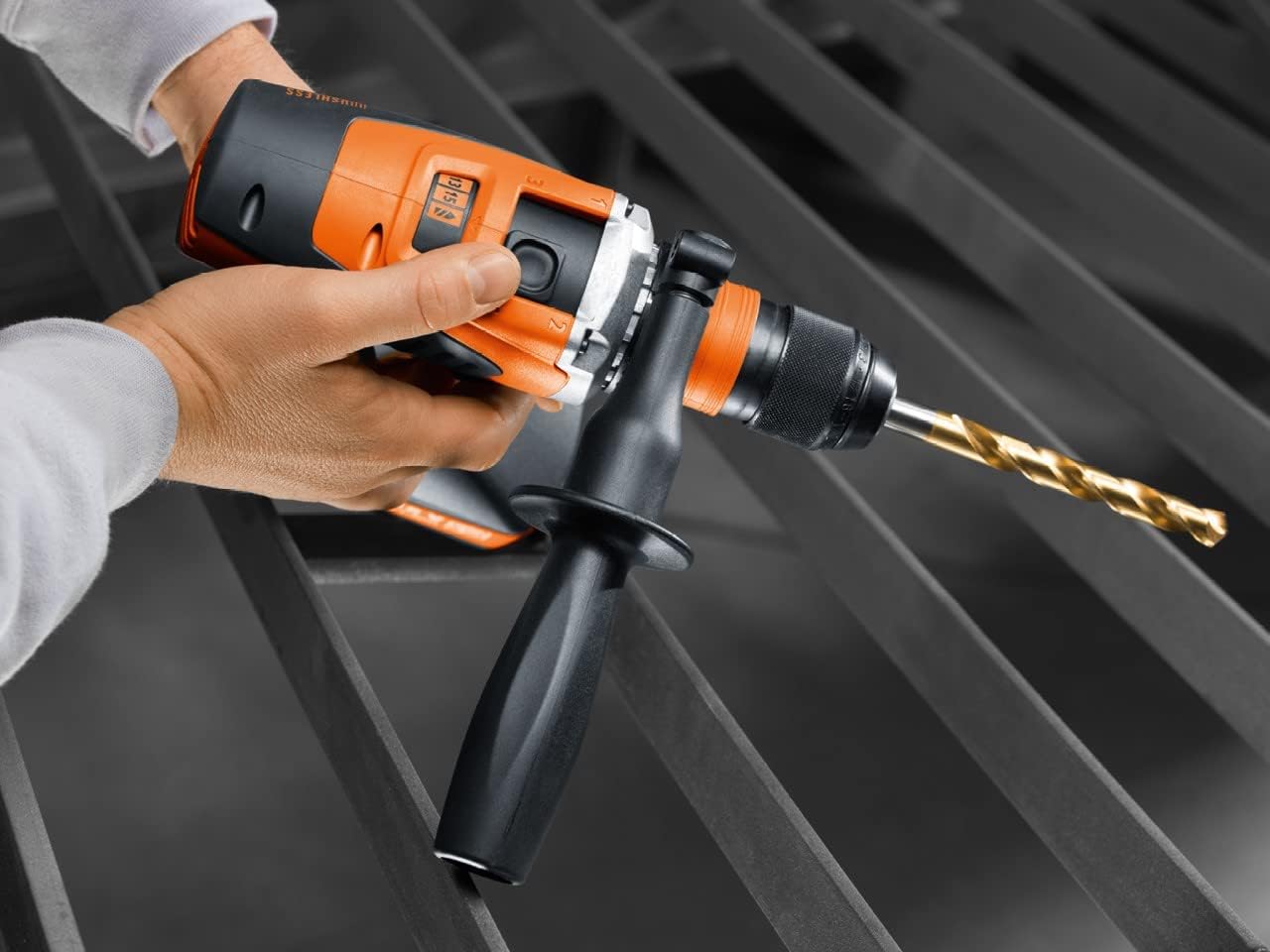

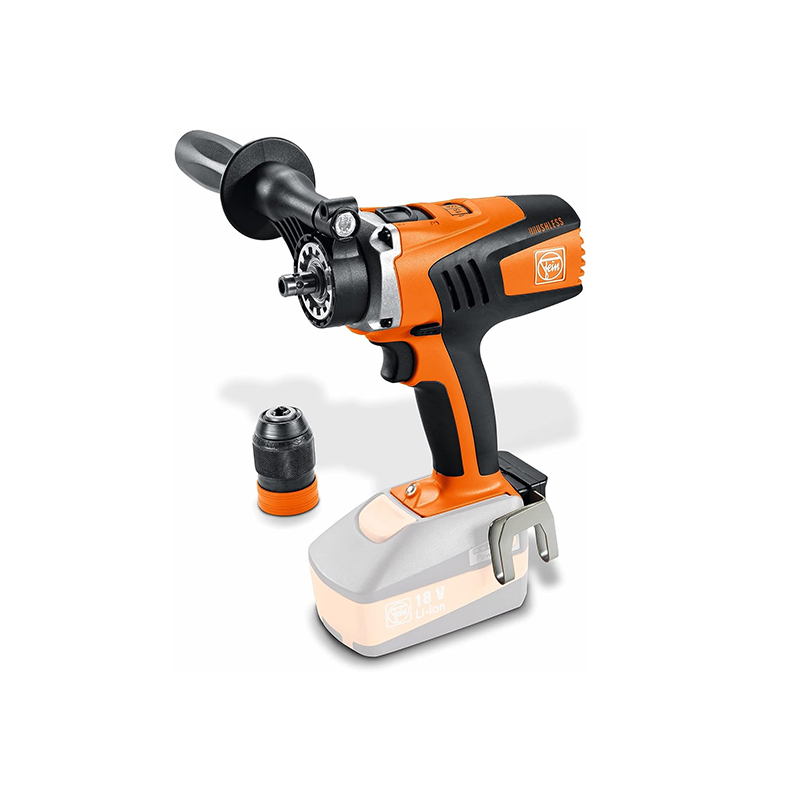

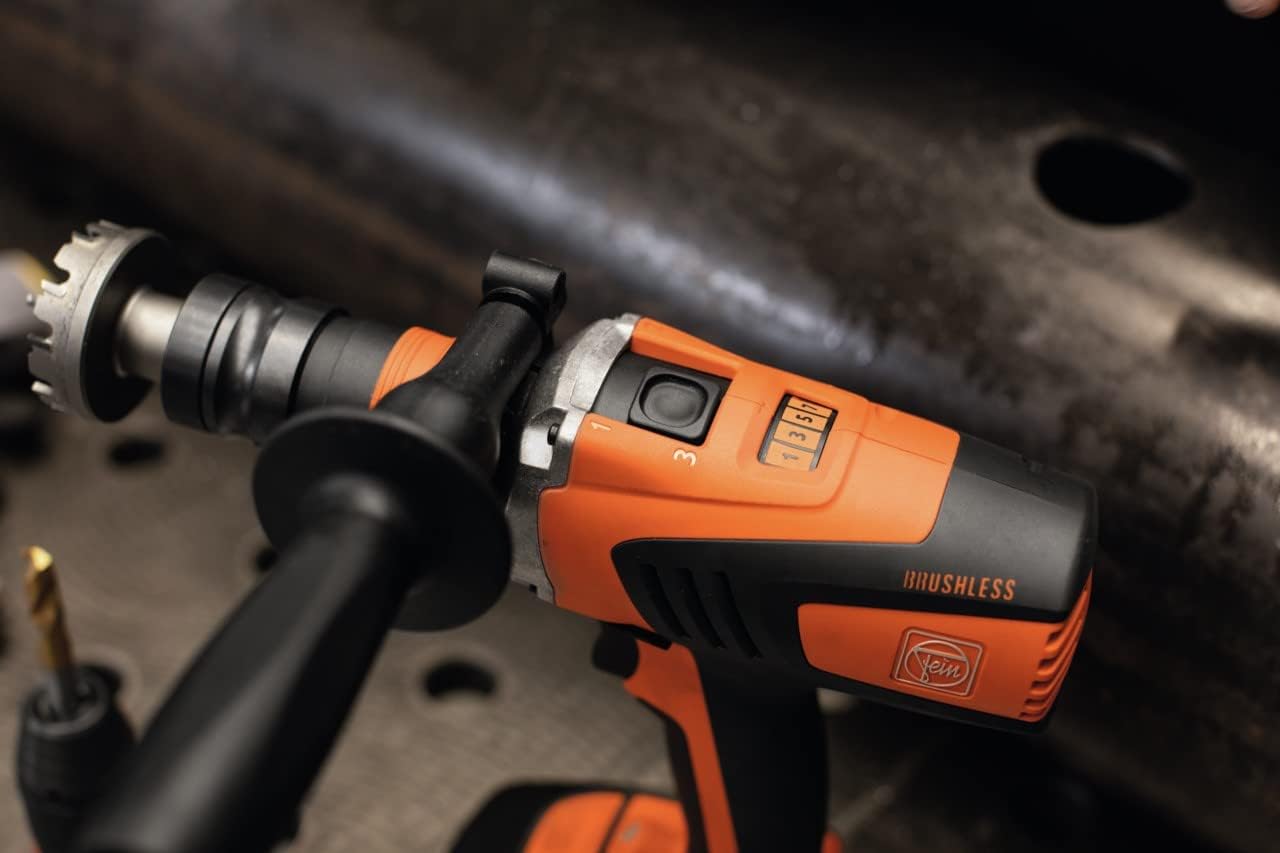

Fein 71161164000 Cordless drill/driver ASCM18QM 18V N00 SELECT. ASCM 18 QM Battery voltage 18 V|Motor brushless |Gearbox 4-speed |Interface QuickIN MAX |Speed. no load 400 / 800 / 1 950 / 3 850 rpm|Max. torque (hard/soft) 90 / 45 Nm|Torque levels 15 + 1 |Drill chuck clamping width 1.5 - 13 mm|Fastening 10 x 400 mm |Capacity in steel Ø 25 mm|Capacity in wood Ø 50 mm|Tapping M 12 |Weight without battery 1.50 kg 1 cordless drill/driver|1 QuickIN drill chuck (120 Nm)|1 belt clip|1 bit holder|1 handle|1 plastic carrying case Brushless FEIN PowerDrive motor. fully encapsulated and dust-protected with 30% higher efficiency and long service life.|4-speed solid metal gearbox. Optimum cutting speeds for drilling in metal and self-drilling screw driving.|QuickIN MAX accessory interface for all QuickIN and QuickIN MAX accessories. Quick change between applications. High torques up to 90 Nm. Including QuickIN solid metal drill chuck (120 Nm) with carbide-tipped clamping jaws and high clamping forces. In speed 4. optimum speeds (3850 rpm) for small diameters. In speed 3. optimum speeds (1950 rpm) for 8 mm diameters. Speed 1 for powerful thread cutting. Suitable for carbide hole saws up to 25 mm. Electronic torque setting. Fixes 10 x 400 mm screws without pre-drilling.|2200 screw connections (5x40 mm) with one battery charge (5 Ah).|One charger for all FEIN Li-ion batteries of all voltage classes. The battery charge can be read off the battery. FEIN SafetyCell technology. Protects the battery and tool from overload. overheating and total discharge.|3-year FEIN PLUS warranty including battery and charger. Brushless FEIN PowerDrive motor. fully encapsulated and dust-protected with 30% higher efficiency and long service life.|4-speed solid metal gearbox. Optimum cutting speeds for drilling in metal and self-drilling screw driving.|QuickIN MAX accessory interface for all QuickIN and QuickIN MAX accessories. Quick change between applications. High torques up to 90 Nm. Includi
